Liquid Glass for Flutter: refraction, blur, tint and a rim over the live backdrop, in the shape the engine already draws (RSuperellipse). Built for cost first. Features come second.

The name is glass, spelled in digits.

Status: 0.x. The API will still change between minor versions; every change is in the changelog.

Every loop above is rendered by the package itself, headless, from example/showcase/; the tiles share one backdrop and meet without a seam. To re-shoot them after a change, run tool/showcase.sh — see Re-shooting the animations.

Most glass packages put a BackdropFilter on every surface, which means the engine reads the backdrop once per surface on every frame. This package takes a different route:

• One host, one capture. A GlassHost records what is painted under all of its glass into one atlas, at a resolution picked against a measured quality budget. Every surface then samples its own slot of that atlas.
• A capture only when something changed. The host walks the composited layer tree. When nothing under the glass changed, it keeps the proxy it already has. That covers a still screen, and a moving glass over content that stays put. Keeping the proxy is the default, and it is the biggest saving in the package: 79.4% and 66.3% of the route's added cost on Adreno, 97.8% on Metal.
• The blur is a downscale. A 1/N proxy is a Gaussian of σ ≈ N/2 to within about 1%, at a fraction of the price of a real Gaussian.

Measured costs, each on its own platform, because the platforms are not comparable:

flutter pub add g1455

Requires Flutter 3.47 or later.

import 'package:g1455/g1455.dart';

GlassHost(
  child: Stack(
    children: <Widget>[
      Positioned.fill(child: content),           // what the glass refracts
      Positioned(
        top: 16, left: 16, right: 16,
        child: GlassBar(child: Text('Library')),  // the glass
      ),
    ],
  ),
)

What is in the box:

• GlassSurface is the primitive: a region of the screen that is glass, with a corner radius, an optional finish, and presence / materialize for appearing.

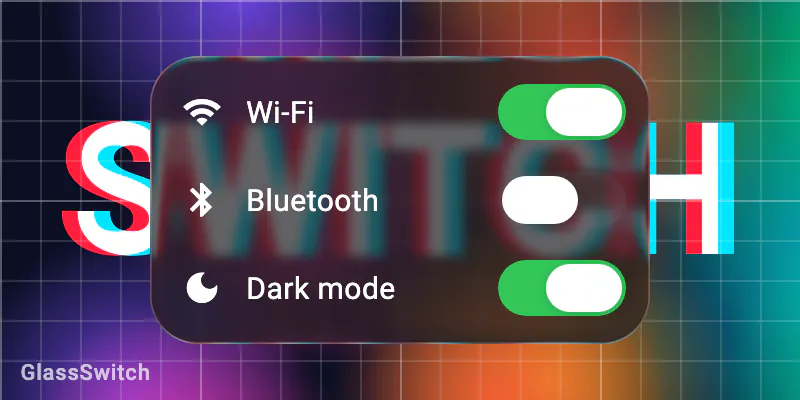

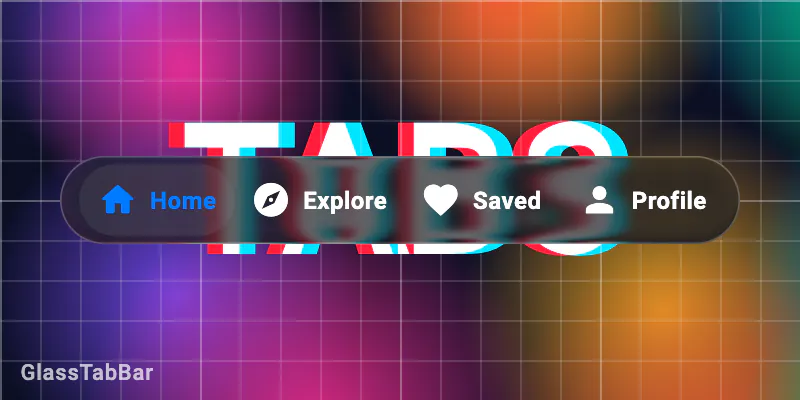

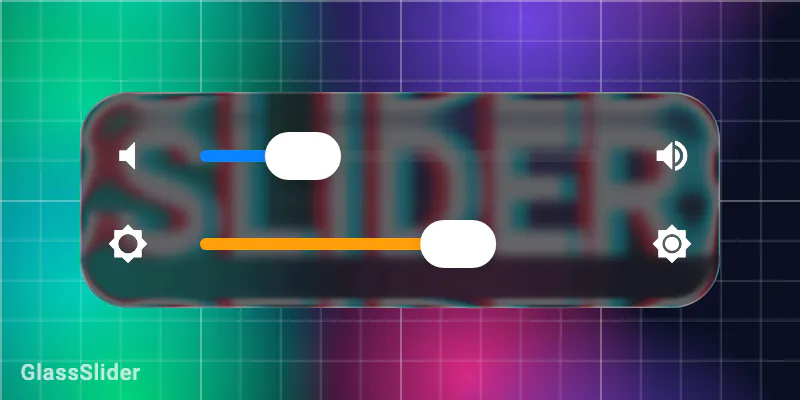

• GlassBar, GlassButton and GlassCard are panels with a label colour chosen for legibility. GlassSwitch, GlassSlider and GlassTabBar are controls whose knob or selection turns into a clear drop while held.

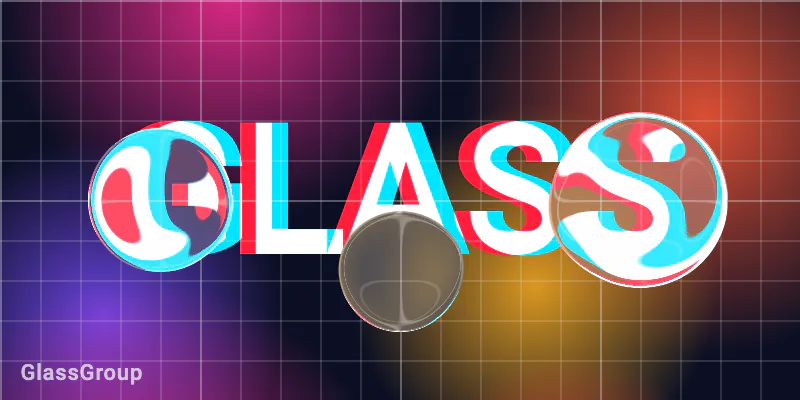

• GlassGroup and GlassUnion draw several surfaces as one silhouette.
• GlassTravel declares the region a moving glass travels in, so the motion does not trigger a capture.

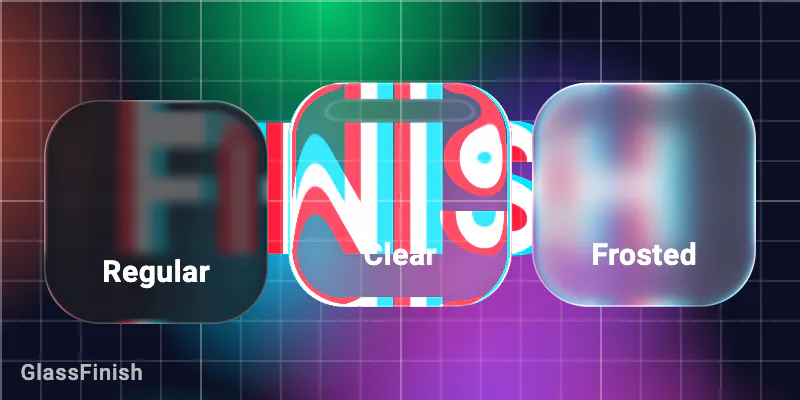

• GlassFinish.regularDark, .regularLight, .clear and .frosted are the optics, calibrated against Apple's own materials on iOS 26. Apple's .regular is two materials, dark over dark content and light over light, and GlassHost picks the branch the same way unless you name one: from backdrop and the platform's appearance.
• Glass appears and leaves through GlassSurface.materialize: the bend, the blur and the tint arrive over the whole shape. presence erodes the shape and is for budding inside a GlassGroup; on a lone panel it narrows to a line.
• GlassTier / GlassTierPolicy pick the rung: full glass, a flat translucent fill, or opaque. Use it for reduce transparency, low-end devices and thermal pressure.
• GlassLedger reports how much glass is on the screen and what it costs.

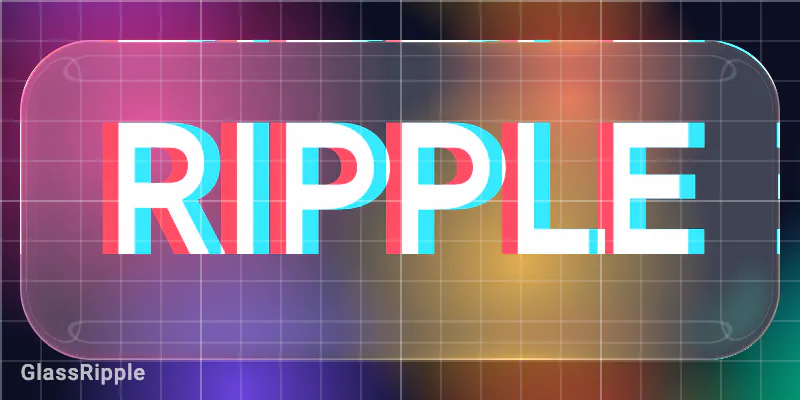

• GlassRipple is optional and not Apple's. When the glass is touched, a viscous wave spreads from the touch: a dimple under the finger, a front that travels out, and a spring-back on release. viscosity goes from water (0) to honey (1). Declare it on GlassHost.ripple for every surface, or on GlassSurface.ripple for one. A wave takes no capture and repaints nothing, and a surface with no wave runs the same shader as before. It is off under reduced motion.

The example/ directory has a full app: four pages under one host, and a settings menu that switches the finish, the tint, the rung and the ripple.

The package cannot work some things out from the render tree, so the application declares them:

• What is behind the glass, for label legibility: GlassHost.backdrop for a flat colour, or richBackdrop: true with minLabelContrast for an image or a scrolling feed. Without either, labels are picked against the worst case, and in debug the package warns when a finish cannot be read over it.
• Reduce transparency, increase contrast on macOS, and thermal state. Flutter does not pass these on, and this package ships no platform code to read them. Read them natively and pass them in: reduce transparency to GlassTierPolicy, contrast to GlassHost.highContrast, thermal state to GlassHost.thermal as a GlassThermalState. On iOS and Android 34+ the host already reads contrast from MediaQuery. On macOS the engine does not pass it on.
• The hardware family, if it is not an Apple device: GlassHost.hardware. Undeclared hardware gets the same behaviour with no price attached.

The route renders byte-identically on Impeller (Metal, Vulkan, GLES) and on Skia/GLES, which Android falls back to below API 29 and on Vivante GPUs. It also works on web, with both CanvasKit and Skwasm. Every bundled shader is compiled for all five shader targets in test/shader_targets_test.dart, so a shader that SkSL would reject fails the tests rather than a user's app.

package:g1455/glass_diagnostics.dart exposes the switches a benchmark flips, such as the tile split of a group's draw and the anti-alias flag. It also exposes the host's proxy handle, whose counters show whether a frame captured. An application has no reason to import it.

flutter pub get
dart format .
flutter analyze --fatal-infos
flutter test --coverage
(cd example && flutter test test/ showcase/)

dart format takes its width (120) and its trailing-comma rule from analysis_options.yaml, and CI fails on a file it would change.

Some tests check a constant baked into lib/ against the measurement it came from. Those measurements are copied into provenance/, unchanged and under their original file names. They live in the repository only; the published package does not carry them.

A pull request runs the same checks in CI, plus flutter pub publish --dry-run and pana. A release is a tag: bump version in pubspec.yaml, add its ## <version> section to CHANGELOG.md, and push v<version>. The tag publishes to pub.dev and opens a GitHub release with that section as notes.

tool/showcase.sh                  # every scene
tool/showcase.sh switch,tab_bar   # just these

The script plays each scene of example/showcase/scenes.dart under flutter test, with a fake clock and scripted touches, so every run produces the same frames and needs no device. It plays one loop to let springs and waves settle and records the next, and it fails if the last frame does not lead back into the first. It then packs the frames into looping webp files in doc/showcase/ with cwebp and webpmux (from libwebp: brew install webp), each frame encoding only the rect that changed.

The screenshots pub.dev shows are the same loops at half the size, because pub ships them with the package:

SHOWCASE_DPR=1 SHOWCASE_DIR=doc/screenshots tool/showcase.sh

A new scene is a ShowcaseScene in that list: a builder given the loop's phase from 0 to 1, and Strokes for the fingers. Scenes are cut from one tall backdrop in list order, so a scene's position in the list is its place in the strip.

MIT
